2024.04.28 - [Microsoft Defender XDR/MDI] - Microsoft Defender for Identity (MDI). (0) Introduction



아래의 기술자료를 기준으로 진행하겠습니다.

Quick installation guide - Microsoft Defender for Identity | Microsoft Learn



본격적으로 MDI 배포에 대해서 다루겠습니다.

1. MDI Sensor 설치

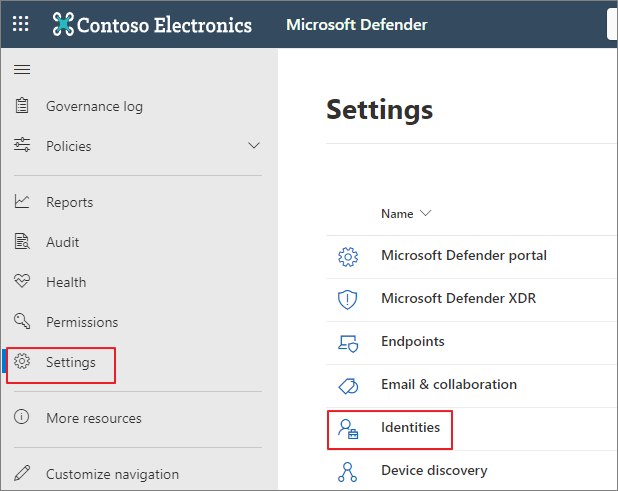

Microsoft Defender (https://security.microsoft.com) →  Settings → Identities

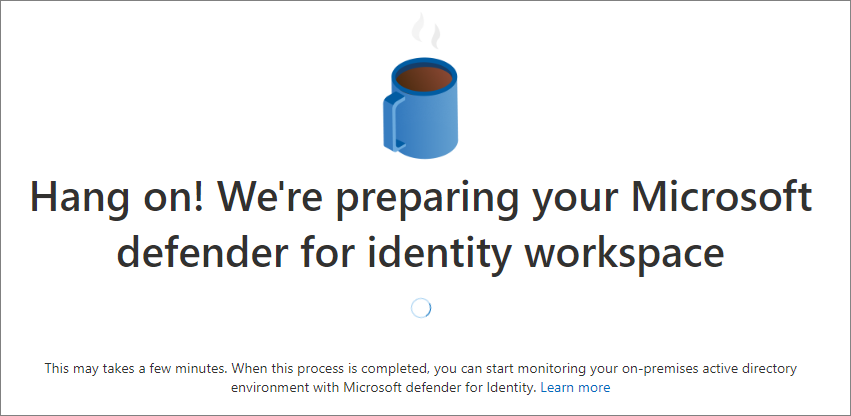

프로비저닝 진행

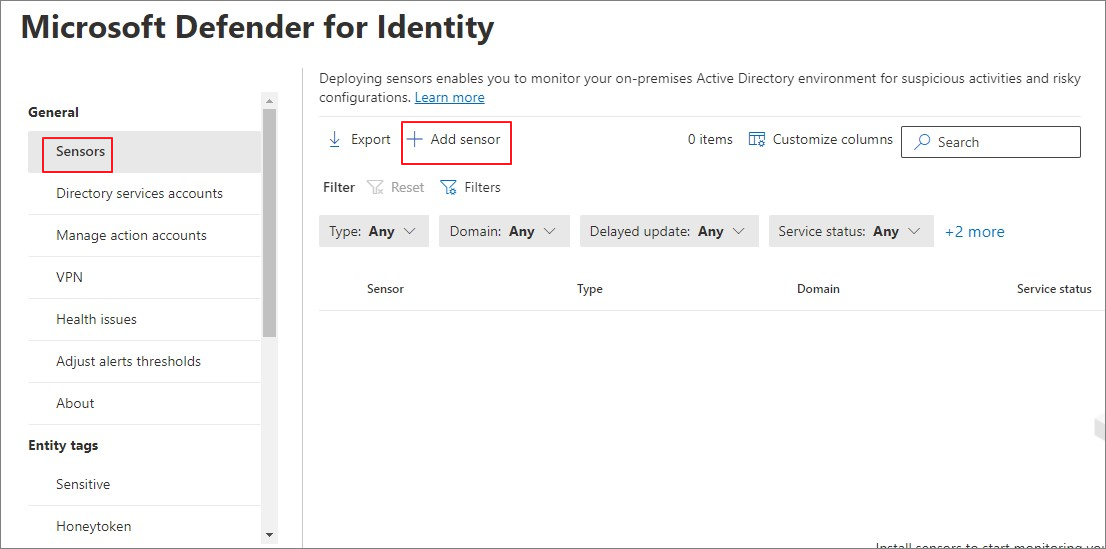

Sensors →  Add sensor

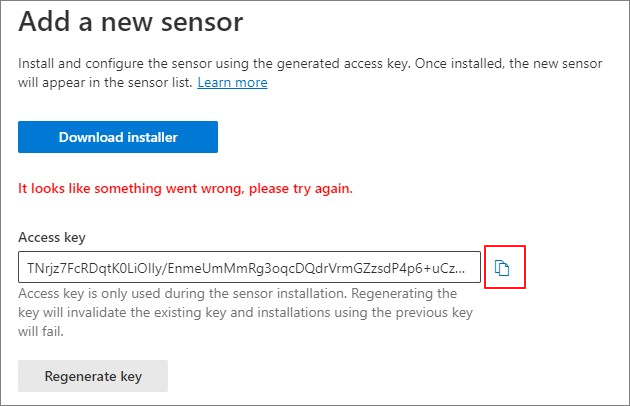

Access key 복사 Download installer →  설치 진행 (Domain Controller ADFS 에서 진행)

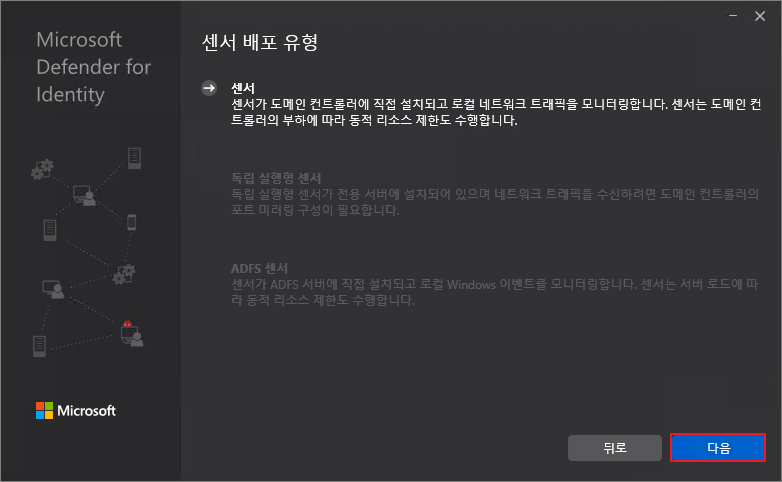

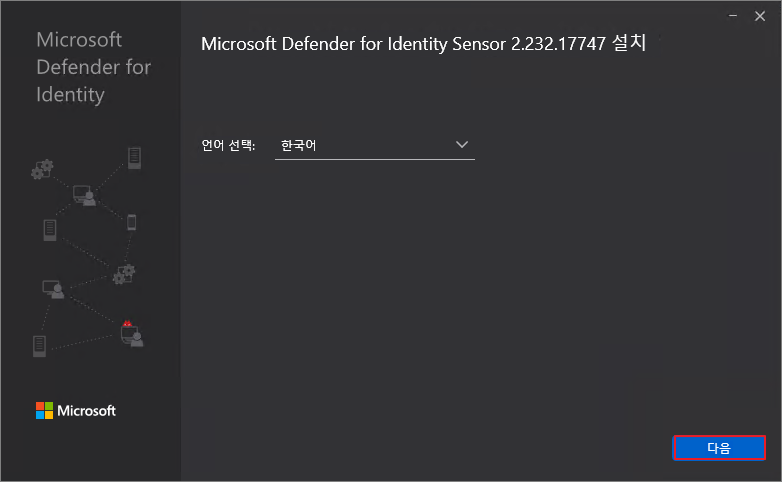

다음



다음

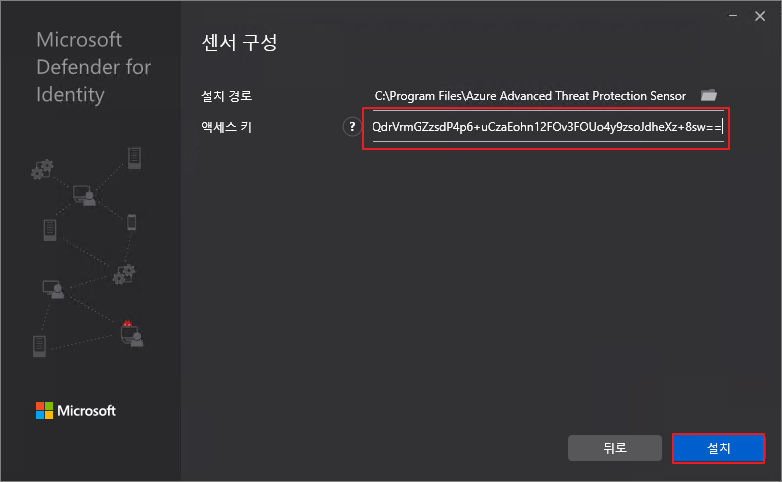

액세스 붙여넣기   설치

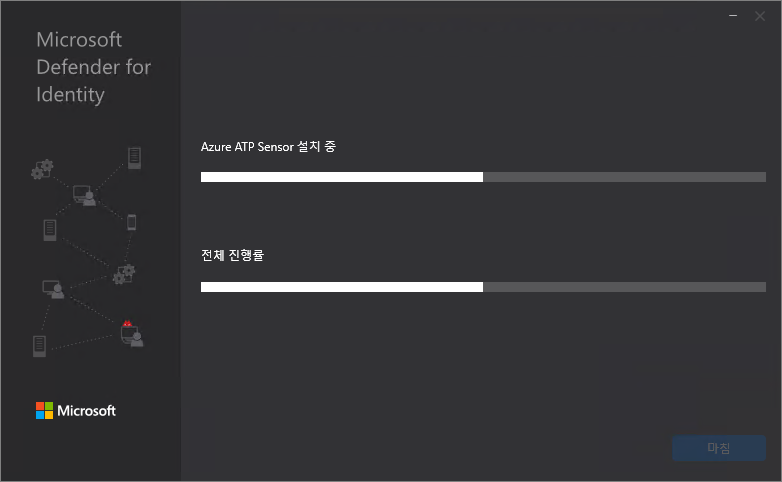

설치 진행중



마침

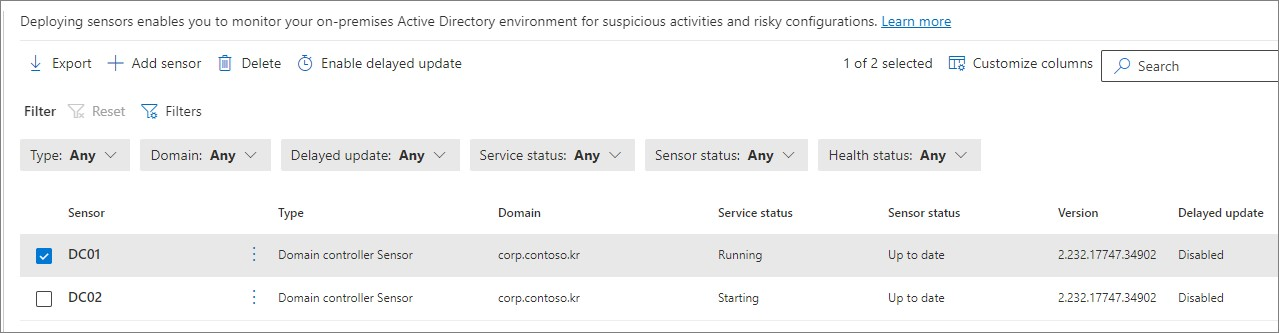

설치 상태 확인



2. Windows 이벤트 수집 구성



기술 자료

Configure audit policies for Windows event logs - Microsoft Defender for Identity | Microsoft Learn

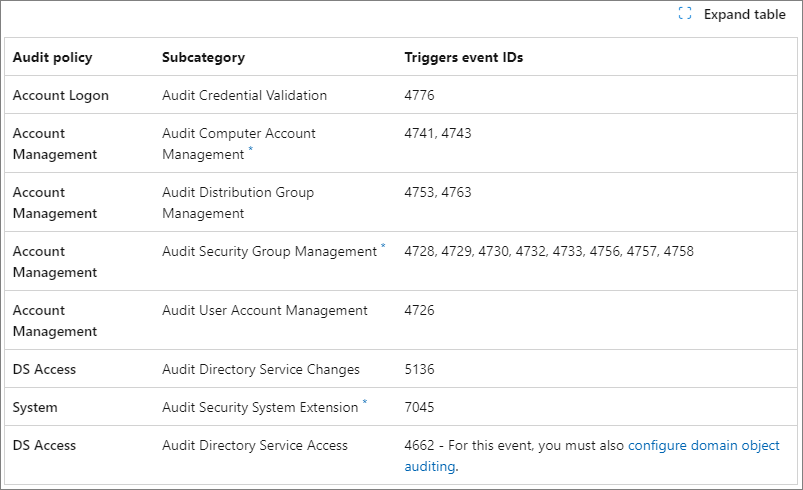

활성화 해야하는 감사 정책 및 수집해야 하는 Event ID는 다음과 같습니다.

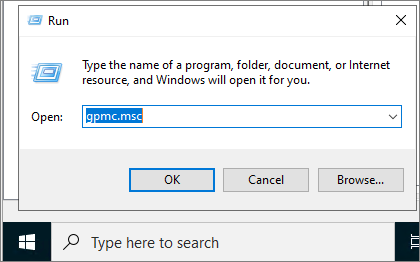

Domain Controller gpmc.msc

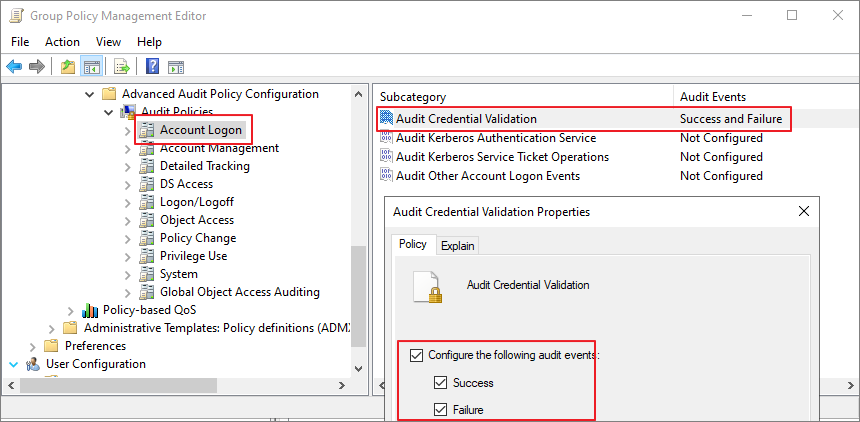

Computer Configuration   Policies  Windows Settings  Security Settings  Advanced Audit Policy Configuration



Account Logon  Audit Credential Validation  Enable Logging

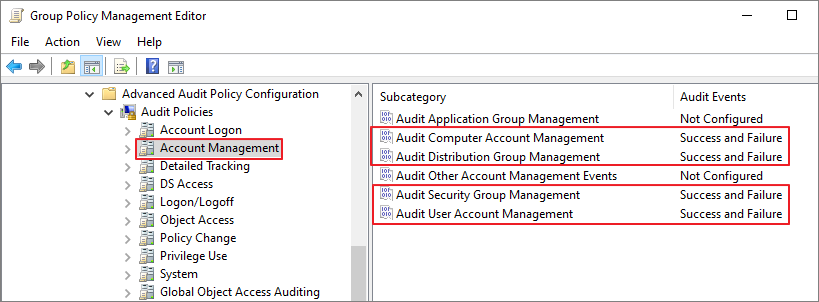

Account Management

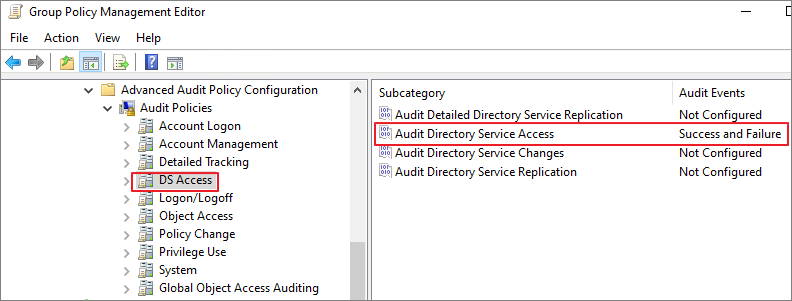

DS Access

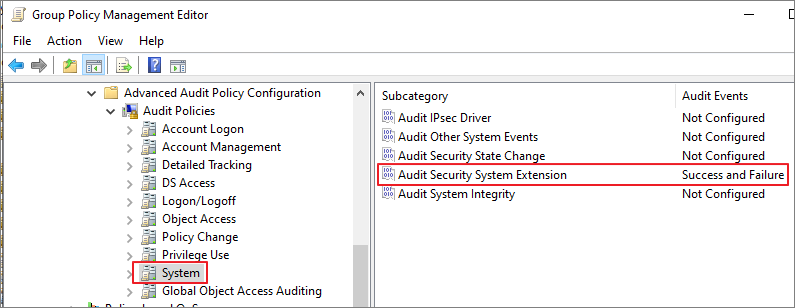

System



3. Configure NTLM auditing (Event ID 8004)

위와 동일하게 Default Domain Contoller 정책에서 수정합니다.

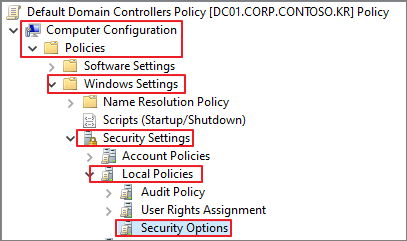

Computer Configuration Policies Windows Settings   Security Settings  Local Policies Security Options

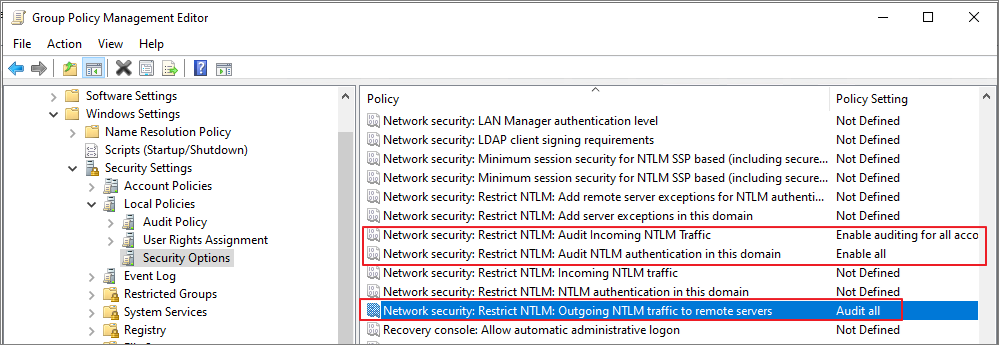

Network security: Restrict NTLM에서 아래의 정책 활성화



4. Configure domain object auditing

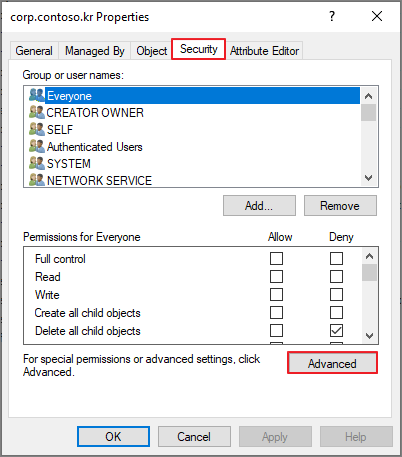

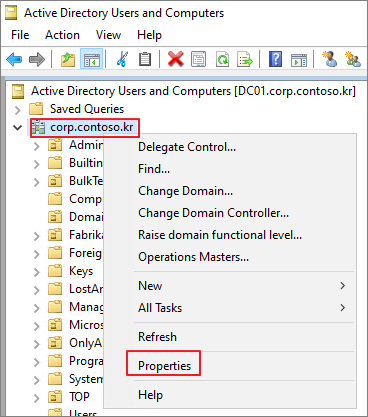

ADUC(DSA.msc)  도메인 우클릭 Properties



Security   Advanced

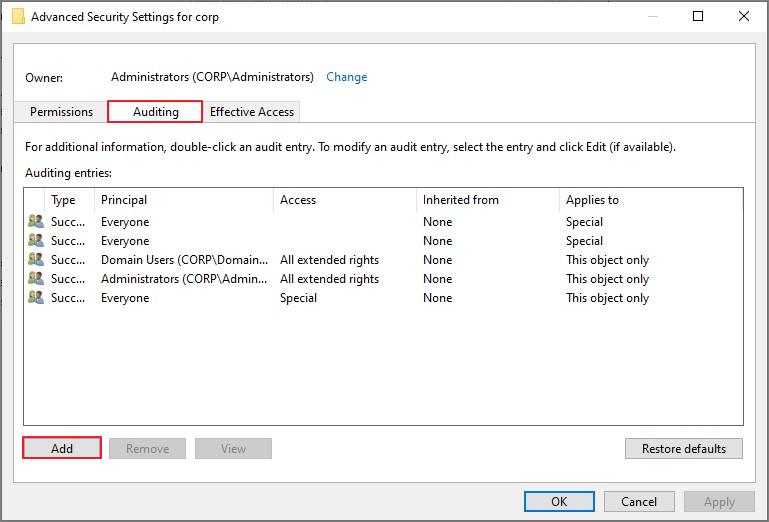

Auditing   Add

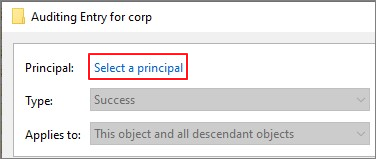

Select a principal



Everyone OK

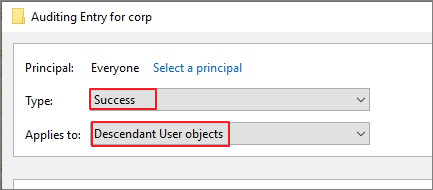

Success,  Descendant User objects 선택



Clear all



Full control



List contents, Read all properties, Read permissions 체크 해제 OK 권한생성 완료

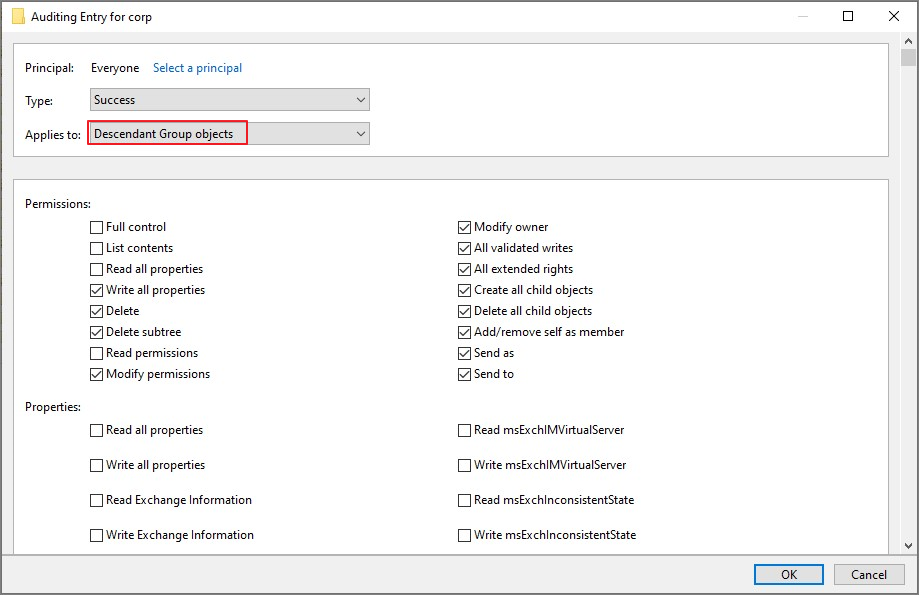

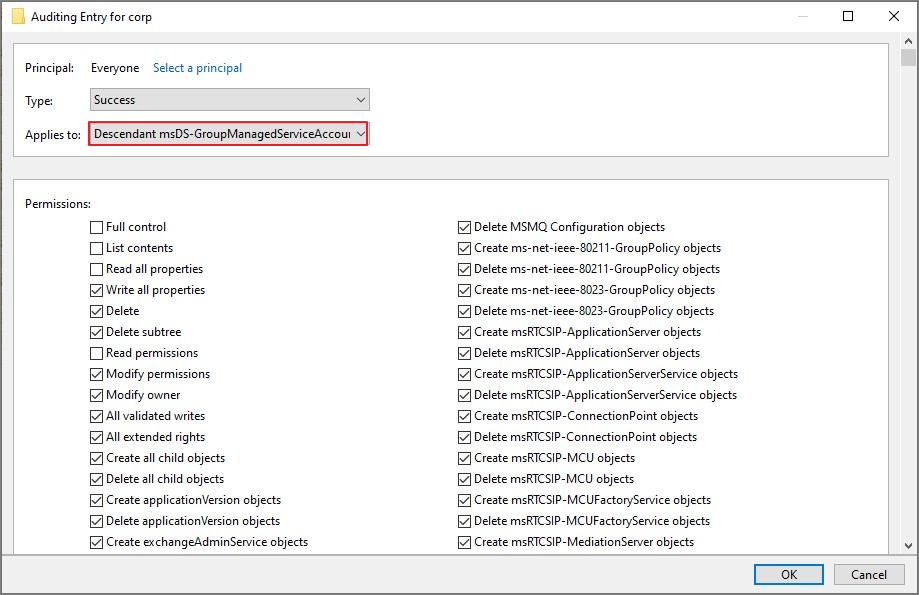

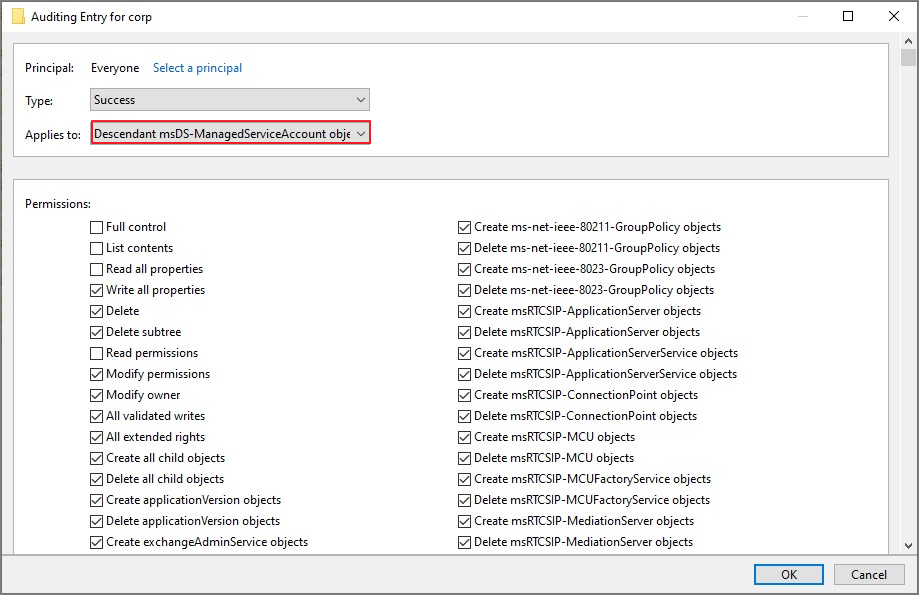

위에서 진행한 것과 같은 방식으로 Descendant Group object, Descendant Computer object, Descendant msDS-GroupManagedServiceAccount Objects, Descendant msDS-ManagedServiceAccount Objects   진행

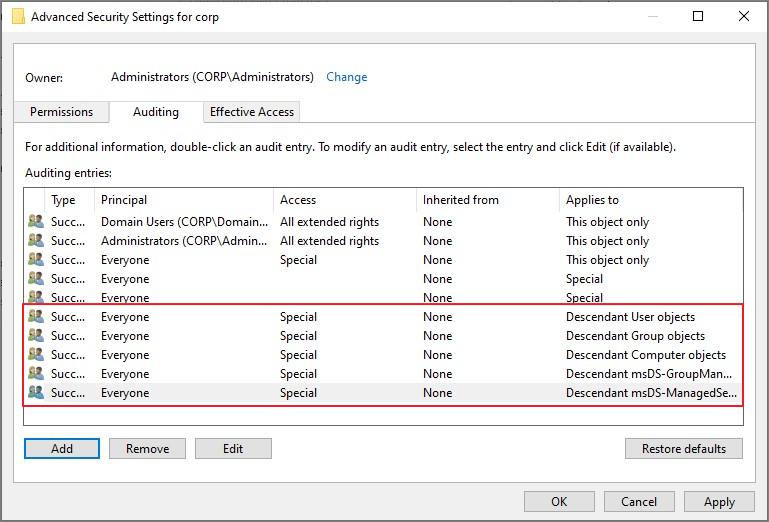

아래와 같이 추가된 권한 확인



5. Enabling auditing on an ADFS object (ADFS 구성시)

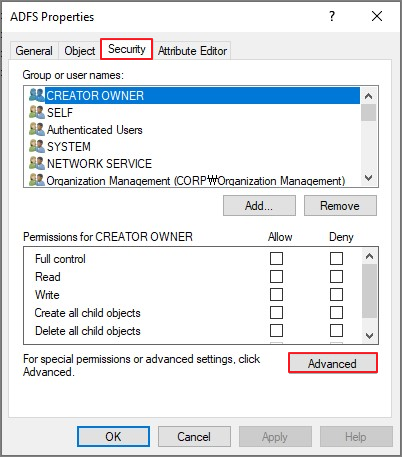

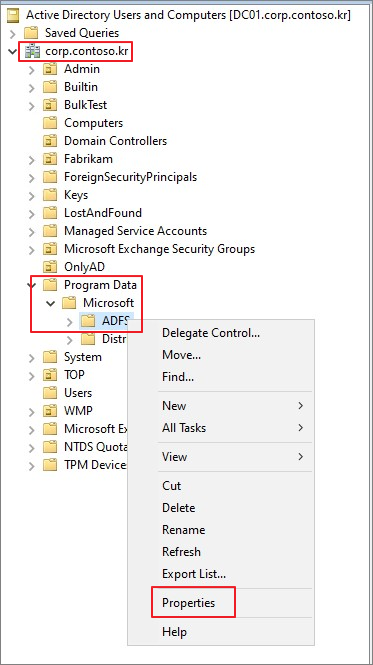

ADUC    도메인    Program Data    Microsoft    ADFS    Properties

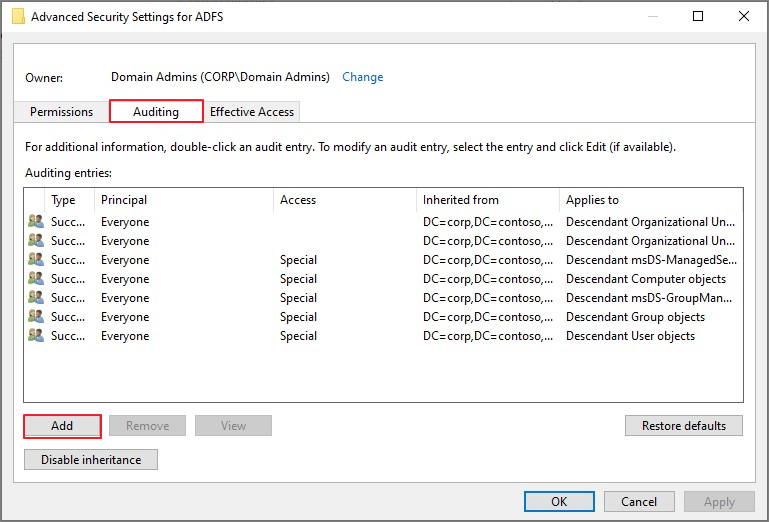

Security    Advanced



Auditing     Add

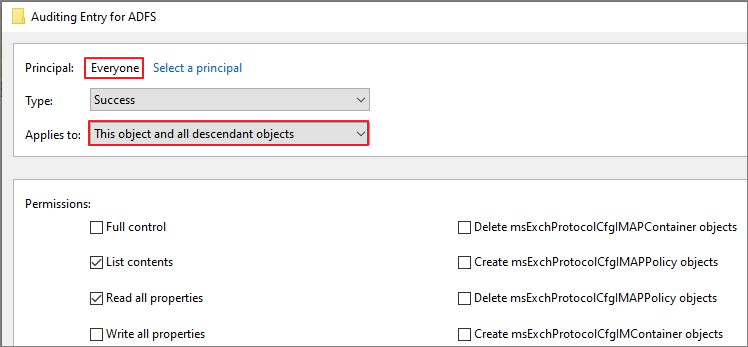

Everyone    This object and all descendant objects

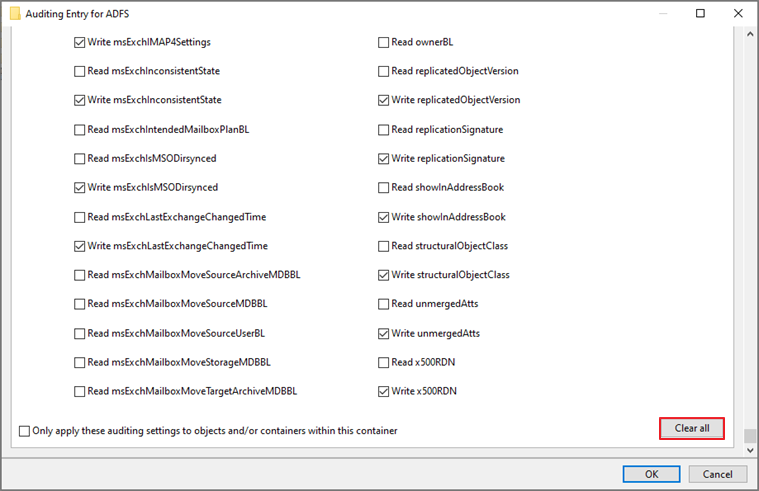

Clear all



Read all properties, Write all properties 체크 OK

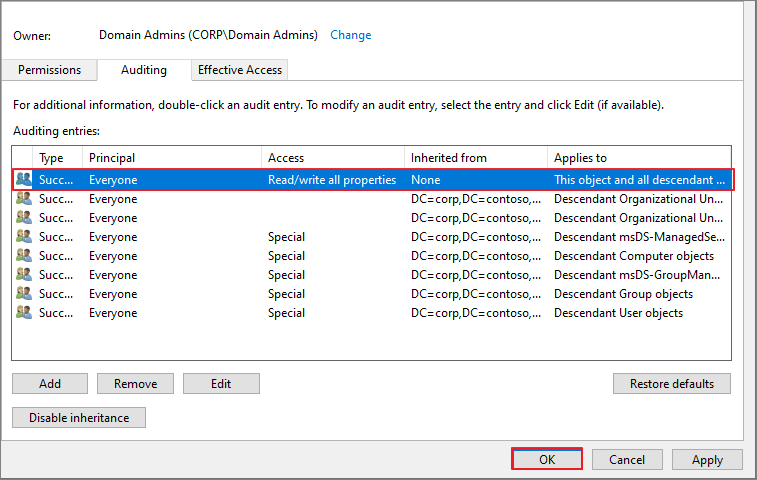

추가된 권한 확인 OK



6. Enable auditing on the Configuration container

Adsiedit.msc

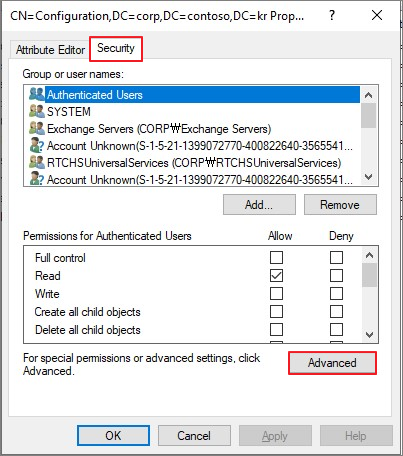

Configuration 우클릭 Properties

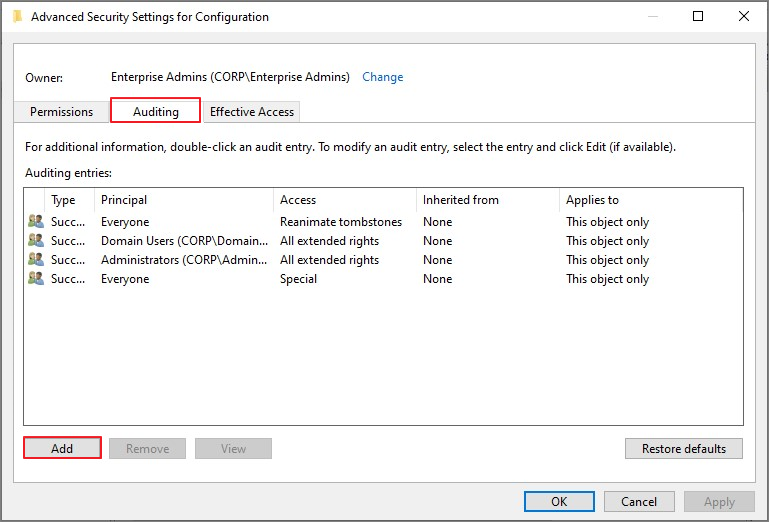

Security   Advanced



Auditing   Add

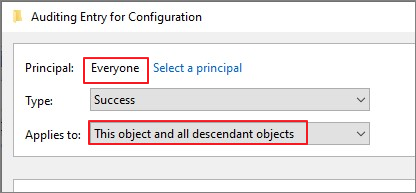

Everyone This object and all descendant objects

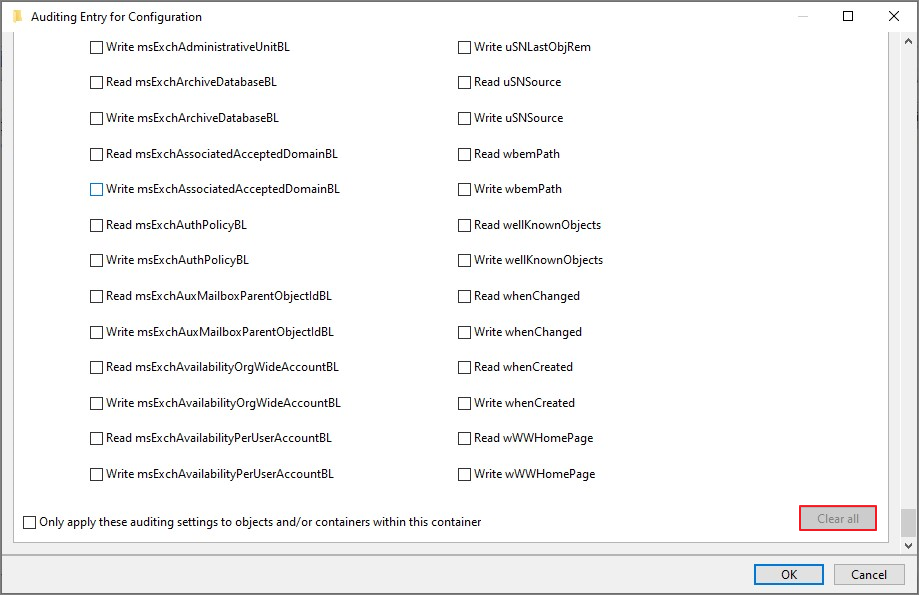

Clear all

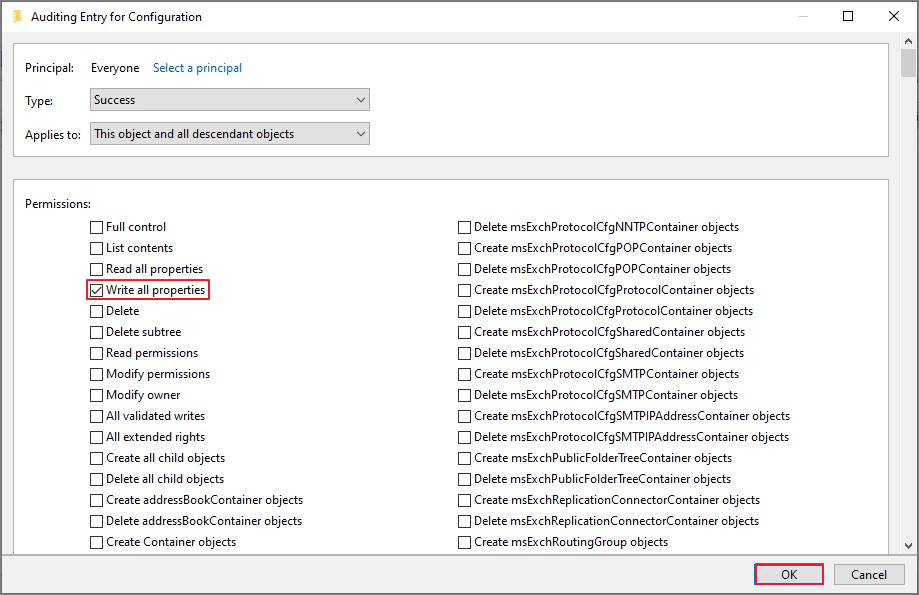

Write all properties OK



생성된 권한 확인 OK



7. Create Service Account

Domain Controller에서 다음 PowerShell Script 를 실행 (환경에 맞게 수정해서 진행합니다.

 # Set Variables
$gMSA_AccountName = "svc_mdiGMSA" # INSERT PREFERRED NAME FOR GMSA
$gMSA_HostsGroupName = "gMSAGroup" # INSERT GROUP NAME TO ADD SERVERS TO
$gMSA_HostNames = "DC01", "DC02", "FS01" #, "ADCS02", "ADFS01", "ADFS02"
# Import Active Directory PowerShell module
Import-Module ActiveDirectory -Verbose
# Create the group and add the members
$gMSA_HostsGroup = New-ADGroup -Name $gMSA_HostsGroupName -GroupScope Global -PassThru
$gMSA_HostNames | ForEach-Object { Get-ADComputer -Identity $_ } |
ForEach-Object { Add-ADGroupMember -Identity $gMSA_HostsGroupName -Members $_ }
# Add Key Distribution Service (KDS) before start adding new group Managed Service Accounts
# If you have only one DC, then use this command to create the KDS root key and set start time in the past
Add-KdsRootKey –EffectiveTime ((get-date).addhours(-10))
# If you have multiple DCs, then use the command below to replicate immediately
Add-KdsRootKey -EffectiveImmediately
# Create gMSA
New-ADServiceAccount -Name $gMSA_AccountName `
-DNSHostName "$gMSA_AccountName.$env:USERDNSDOMAIN" `
-PrincipalsAllowedToRetrieveManagedPassword $gMSA_HostsGroupName





gMSAGroup 확인

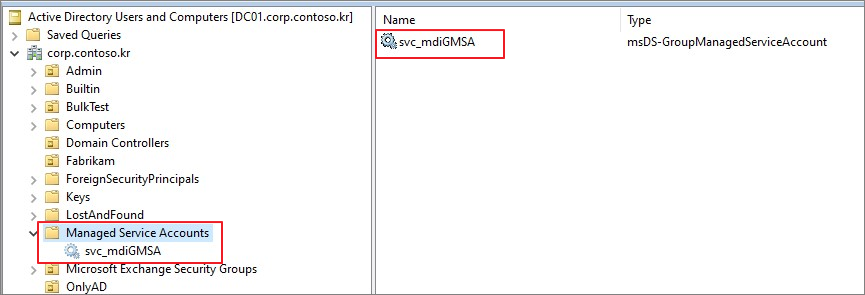

Service Account 확인

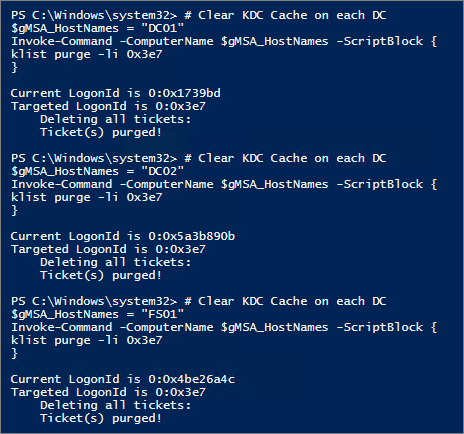

 # Clear KDC Cache on each DC
$gMSA_HostNames = “DC01"
Invoke-Command -ComputerName $gMSA_HostNames -ScriptBlock {
klist purge -li 0x3e7
}

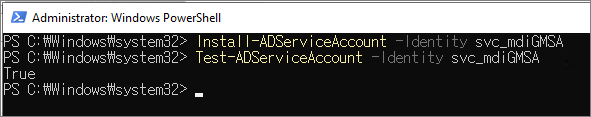

DC/ADFS에서 Service Account 설치



Deleted Objects Containers에 필요한 읽기 권한을 부여

 # Declare the identity that you want to add read access to the deleted objects container:
$Identity = 'svc_mdiGMSA'
# If the identity is a gMSA, first to create a group and add the gMSA to it:
$groupName = 'gMSAGroup'
$group = (Get-ADGroup -Identity gMSAGroup).name
# Get the deleted objects container's distinguished name:
$distinguishedName = ([adsi]'').distinguishedName.Value
$deletedObjectsDN = 'CN=Deleted Objects,{0}' -f $distinguishedName
# Take ownership on the deleted objects container:
$params = @("$deletedObjectsDN", '/takeOwnership')
C:\Windows\System32\dsacls.exe $params
# Grant the 'List Contents' and 'Read Property' permissions to the user or group:
$params = @("$deletedObjectsDN", '/G', ('{0}\{1}:LCRP' -f ([adsi]'').name.Value, $Identity))
C:\Windows\System32\dsacls.exe $params

# To remove the permissions, uncomment the next 2 lines and run them instead of the two prior ones:
# $params = @("$deletedObjectsDN", '/R', ('{0}\{1}' -f ([adsi]'').name.Value, $Identity))
# C:\Windows\System32\dsacls.exe $params

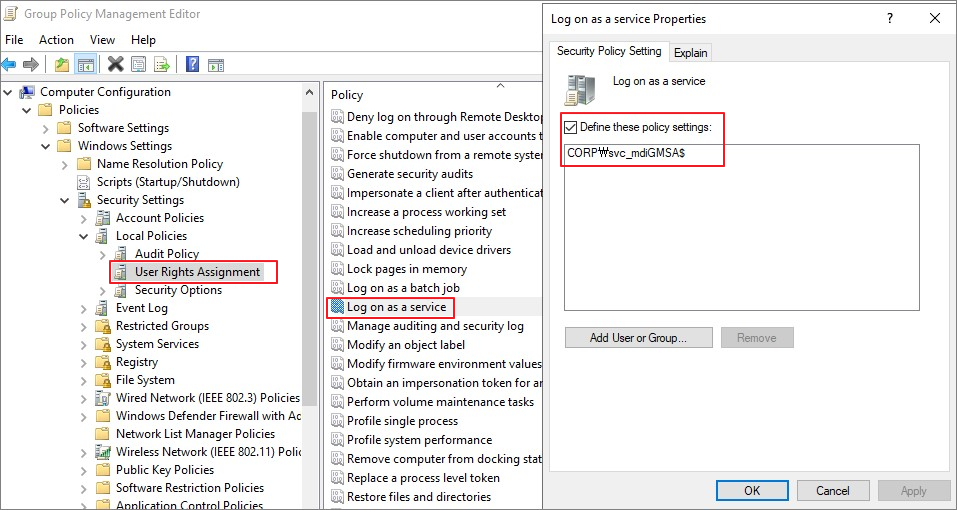

다음 그룹 정책에 생성한 서비스 계정 추가



8. Add Service Account

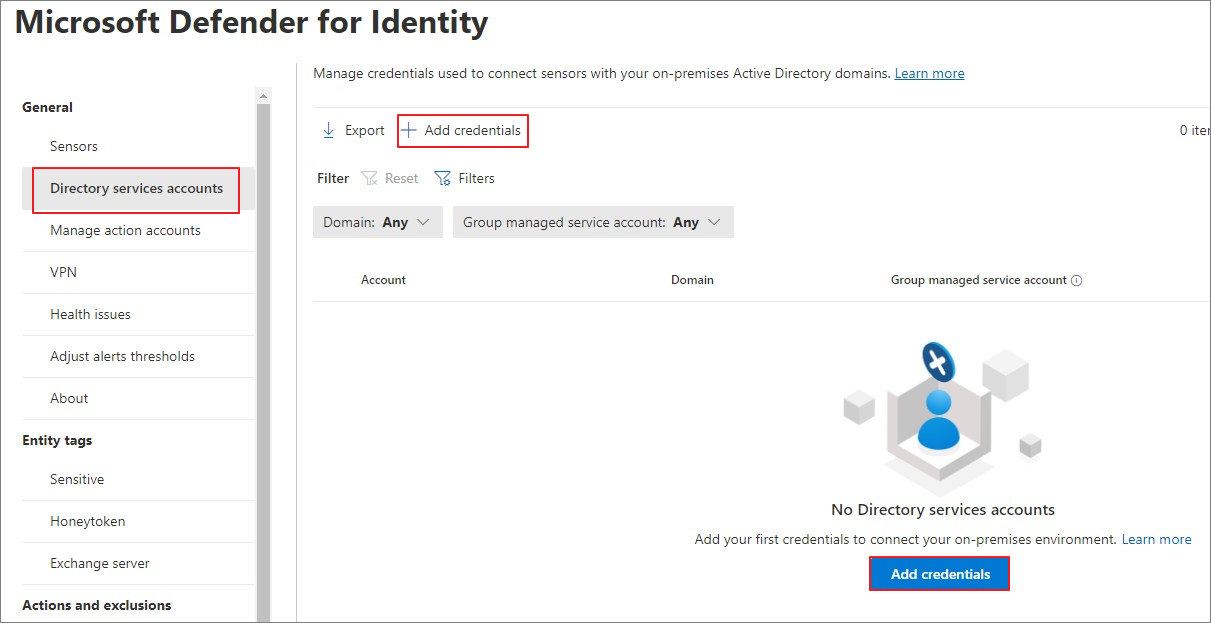

Directory services accounts Add credentials

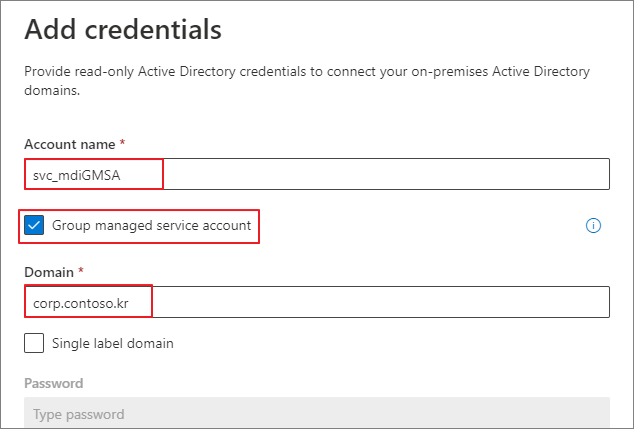

Group Managed service account 추가



9. Configure ADFS

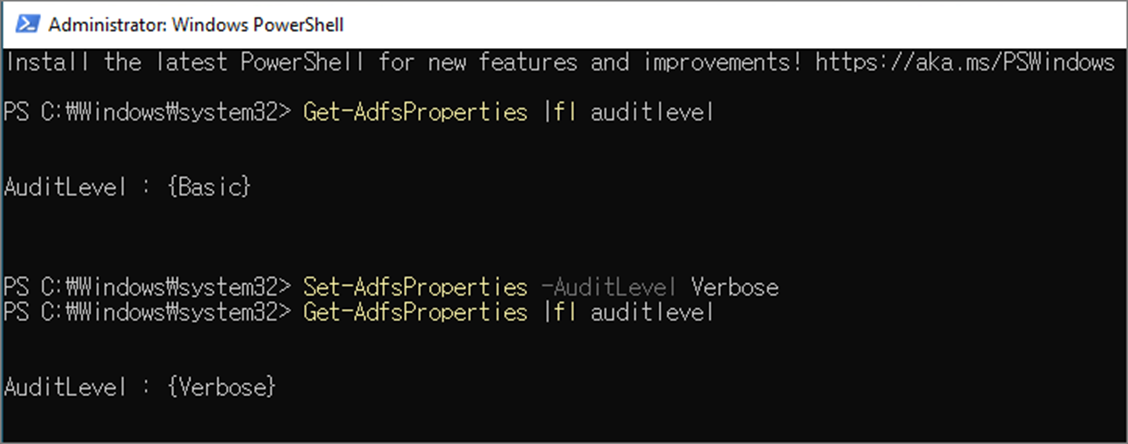

ADFS 머신에서 Audit 활성화



구성이 완료되면 아래와 같이 Advanced hunting에서 Identity와 관련된 기록이 조회되는 것을 확인할 수 있습니다.



다음 포스팅에서는 MDI에서 어떠한 내용들을 확인할 수 있는지 포스팅하겠습니다.
